Industrial Robot Disassembly, Assembly & Maintenance Training Workbench

The training system uses a lightweight six-axis articulated industrial robot, identified as the 607 / 607L series in the supplied specifications.

The robot provides a rated payload of 5 kg, a maximum payload of 6 kg and a maximum working radius of 780 mm or 900 mm, depending on the model.

Its compact structure, internally routed cables and flexible mounting arrangements make it suitable for repeated mechanical training and industrial automation demonstrations.

Supported mounting arrangements described by the supplier include floor mounting, suspended mounting and inverted mounting.

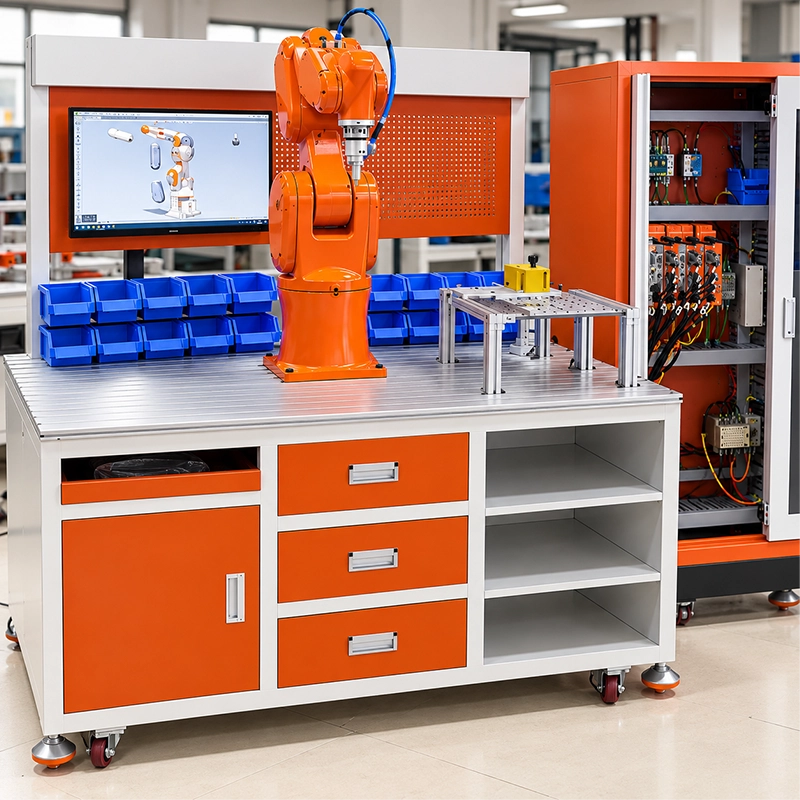

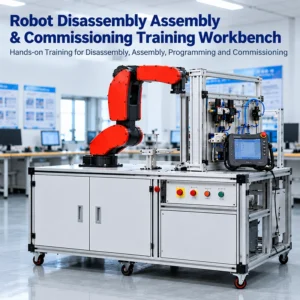

The mechanical training workbench is designed for hands-on disassembly and assembly exercises involving the robot’s six axes.

• Aluminium-profile construction
• Approximate dimensions: 1500 × 1000 mm
• Dedicated robot disassembly and assembly area
• Separate positioning and accuracy adjustment area
• Supports repeated mechanical training exercises

The workbench provides a practical environment for understanding the internal mechanical structure of industrial robots.

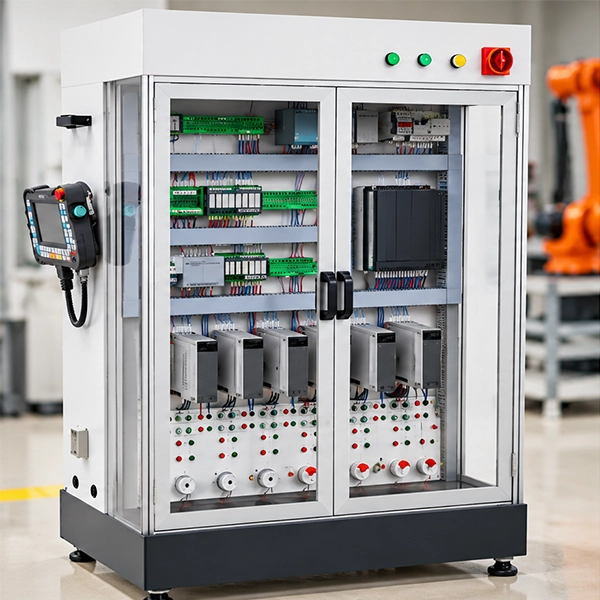

The electrical training platform is intended for the installation of robot axis drives and control system components.

• Aluminium-profile structural frame
• Approximate dimensions: 1200 × 800 × 1600 mm
• Axis drive installation training
• Robot control system assembly exercises
• Electrical wiring on the training platform
• Open-style electrical cabinet arrangement

Students can study the organization of robot electrical control systems and gain practical experience with component installation and wiring.

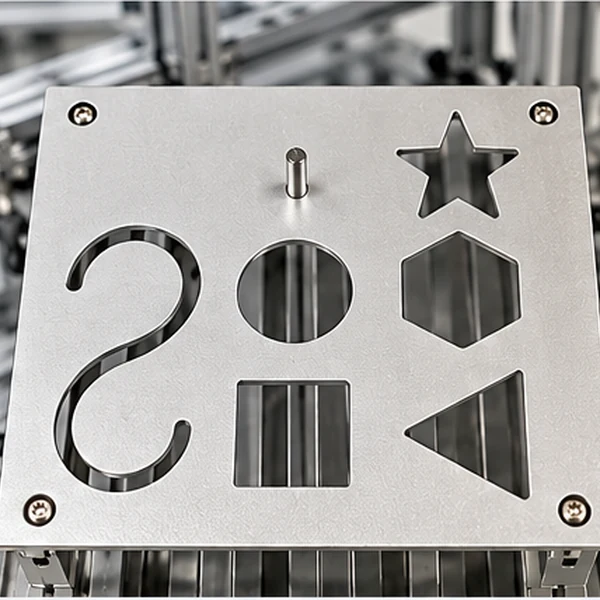

The mechanical training workbench is equipped with two training modules for palletizing and trajectory exercises.

These modules are used for positioning and accuracy adjustment after the robot has been disassembled and reassembled.

Students can practice robot movement and positioning while developing an understanding of mechanical adjustment and commissioning procedures.

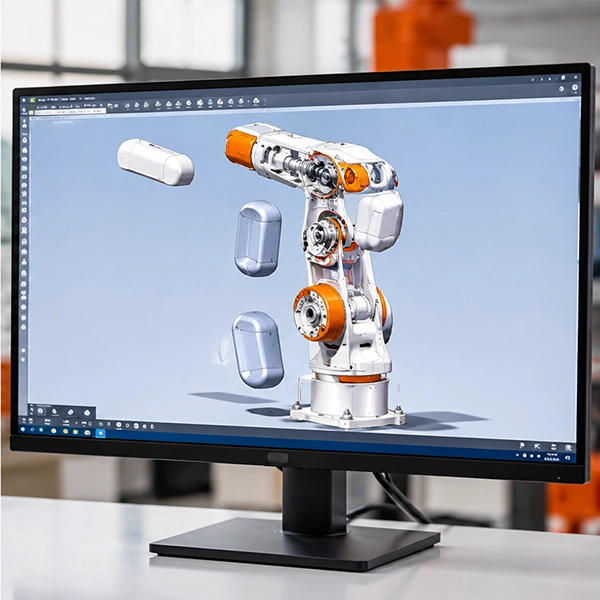

The supporting computer system includes robot body assembly visualization resources.

An overall exploded-view illustration helps students understand the structure of the robot body and the relationships between its mechanical components.

These resources support classroom instruction and practical assembly training by providing visual references for identifying components and their positions.

Specifications are based on the supplied factory documentation. The 607 and 607L variants may have different working radii and weights. Please confirm the selected robot model and final equipment configuration before ordering.

The system is designed for intermediate-level industrial robotics training, particularly robot mechanical disassembly and assembly, electrical installation, positioning adjustment and maintenance-related practical exercises.

The supplier documentation identifies the 607 and 607L models. The listed maximum working radii are 780 mm and 900 mm, with robot weights of 30 kg and 32 kg. Please confirm the selected model and its corresponding specifications before ordering.

Yes. The documented system includes an electrical control training platform for axis drive installation, control system assembly and wiring exercises.

Yes. The mechanical workbench includes palletizing and trajectory training modules intended for positioning and accuracy adjustment after robot reassembly.

The factory documentation describes a supporting computer system containing an overall exploded-view illustration of the robot body. Please confirm the final software and computer configuration when requesting a quotation.

Yes. Contact Outdevice to discuss the robot model, training equipment configuration, technical documentation and quotation for your institution or laboratory.
