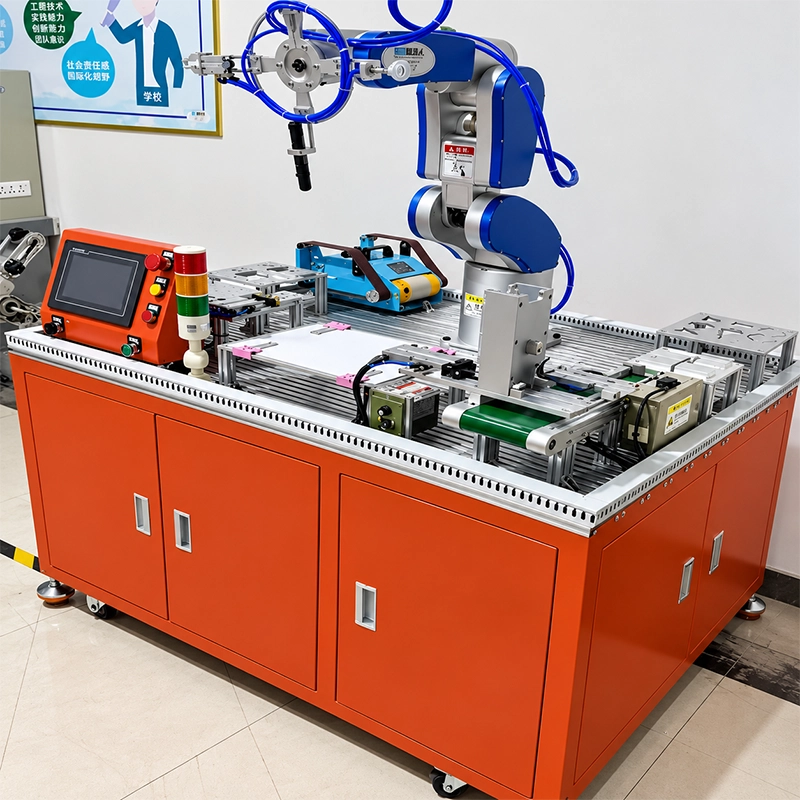

Industrial Robot Special-Shaped Pin Insertion Training Workstation
An Introductory Robotics Training Platform for Pin Insertion, Material Handling and Industrial Robot Programming
The Industrial Robot Special-Shaped Pin Insertion Training Workstation is designed
for vocational education, technical training and industrial robotics laboratories.
Built around a six-axis articulated industrial robot, the workstation combines
practical assembly exercises with a range of industrial robot application modules.
Its modular platform supports robot operation, teaching and programming, trajectory
simulation, pin-insertion practice, material handling, palletizing and other
application-based exercises. The workstation is also suitable for practical skills
training and industrial robot skills competitions.
Key Highlights
- Six-axis articulated industrial robot
- Special-shaped pin-insertion practice module
- Modular training platform with multiple applications
- Material handling and palletizing exercises
- Robot programming and trajectory simulation
- Suitable for vocational education and skills training
Key Features

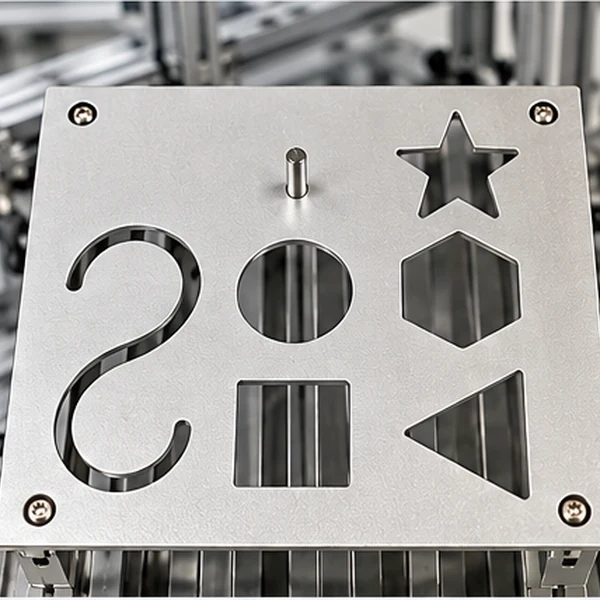

Geometric Trajectory Simulation
Practice industrial robot path programming using geometric templates featuring different shapes, curves and positioning paths.

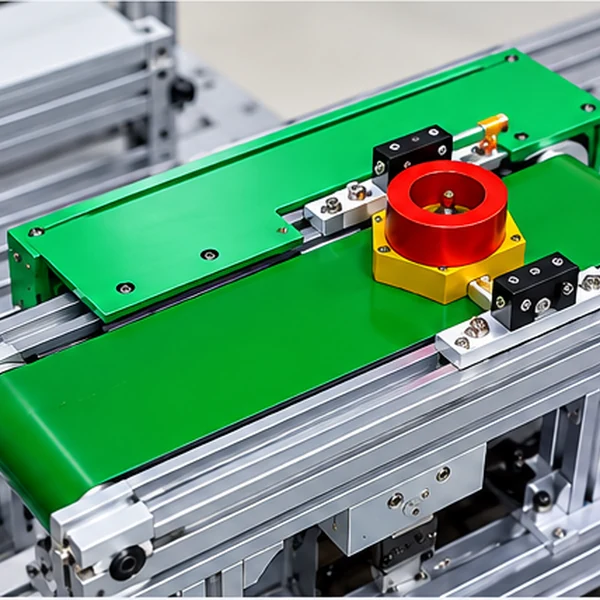

Material Handling and Sorting
Learn robot-based material transfer, pickup and placement, and coordinated conveyor operations through practical sorting exercises.
Simulated Polishing and Grinding
Explore programmed robot trajectories for simulated industrial polishing and grinding applications.

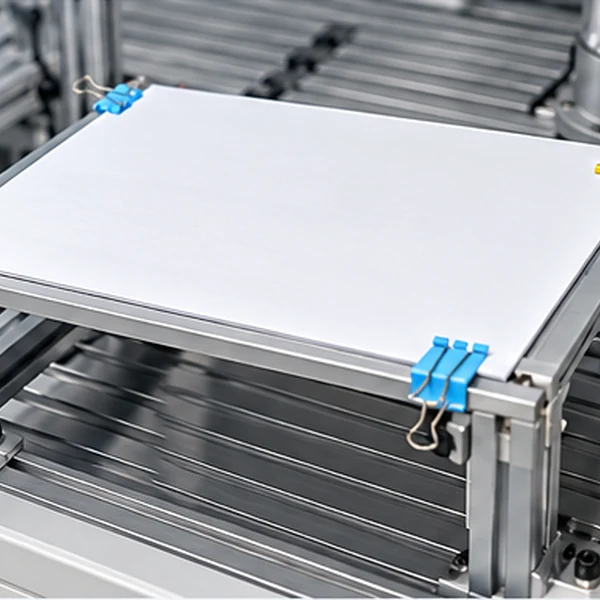

Writing and Drawing Simulation
Develop robot trajectory programming skills through simulated writing, drawing and path-following exercises on a dedicated training platform.
Special-Shaped Pin Insertion
Practice robot positioning, alignment and precision pin-insertion operations using dedicated fixtures with multiple insertion holes.

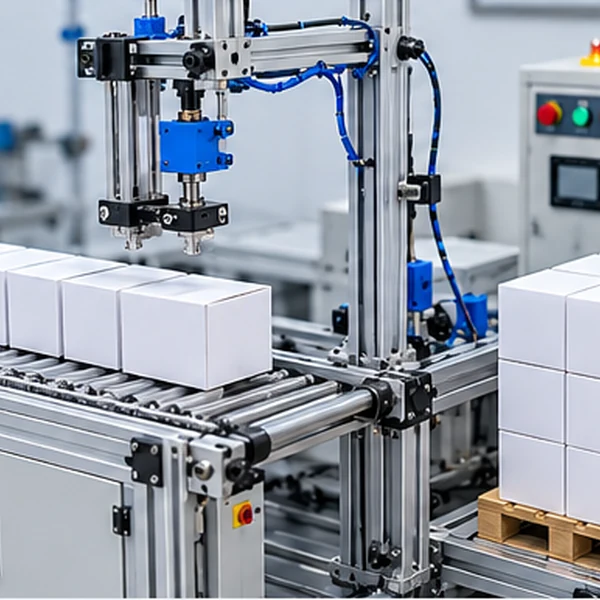

Palletizing and Warehouse Simulation
Learn robot-based pickup, placement, workpiece stacking and introductory warehouse-handling operations through palletizing exercises.
Integrated Training Modules
The platform uses a modular design to support different industrial robot training
exercises. The following modules are listed in the supplied product documentation.
Please confirm the final included configuration when requesting a quotation.

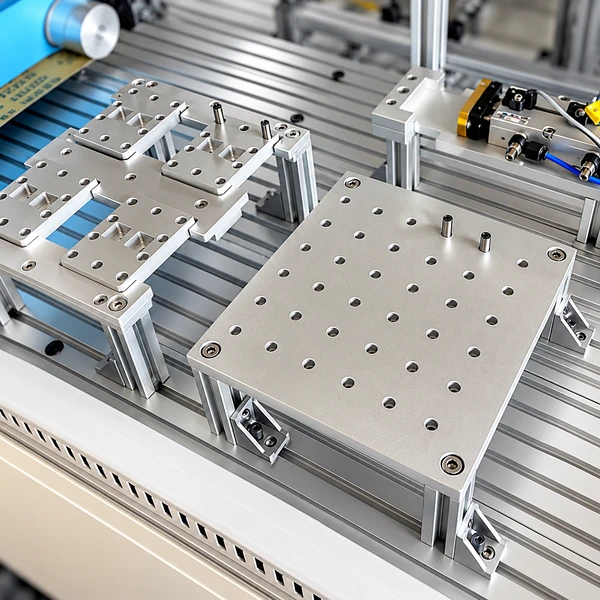

Special-Shaped Pin Insertion Module
Designed for practical pin-insertion and assembly exercises. Students can use
the module to learn basic robot positioning and programmed movements associated
with assembly tasks.
Six-Axis Industrial Robot
The supplier documentation identifies a BRT 0707A robot body with six axes.
It lists a 700 mm reach, 7 kg payload and ±0.05 mm repeatability. The robot is
specified for floor-mounted installation.
Main Workstation Frame
The workstation frame measures approximately 1400 × 1200 × 750 mm and is
constructed from aluminium profiles with a powder-coated sheet-metal surface.
Material Handling and Palletizing Module
The material handling and palletizing functions introduce robot-based pickup,
transfer, placement and palletizing exercises. The listed palletizing platform
uses an aluminium-profile structure.
Conveyor Integration Module
The conveyor module is intended to support coordinated operation between the
robot and material-conveying equipment, including automated material handling
and warehouse-related exercises.

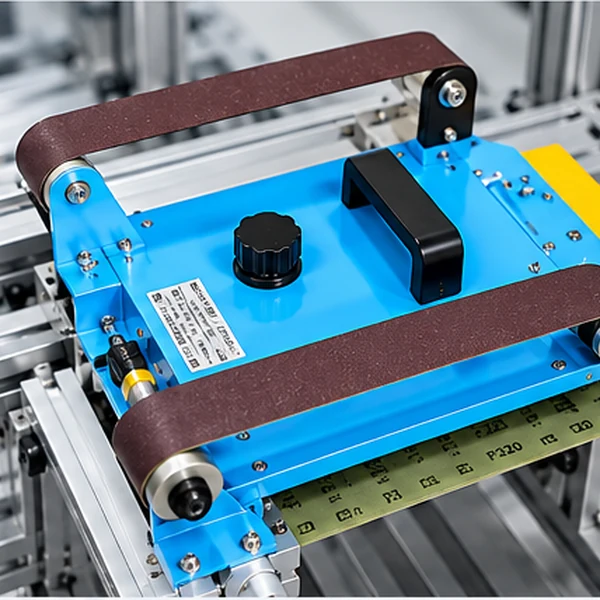

Polishing and Grinding Module
Simulates common factory grinding-wheel processes for introductory polishing
and grinding trajectory training.
Writing and Trajectory Simulation Modules
These modules support programmed robot movement and trajectory exercises,
including writing and simulated path-following tasks.
Robot Gripper Module
The gripper module supports material pickup and TCP (Tool Center Point)
trajectory operation exercises.
Technical Specifications
View Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Industrial Robot Special-Shaped Pin Insertion Training Workstation |
| Training Level | Basic / introductory |
| Robot Model | BRT 0707 / BRT 0707A, as identified in different parts of the supplier documentation |
| Robot Configuration | Six-axis articulated industrial robot |
| Degrees of Freedom | 6 |
| Reach | 700 mm |
| Rated Payload | 7 kg |
| Repeatability | ±0.05 mm, as stated in the supplier documentation |
| Robot Installation | Floor-mounted |
| Robot Protection Rating | IP45, as stated in the supplier documentation |
| Workstation Dimensions | 1400 × 1200 × 750 mm |
| Main Frame | Aluminium profiles |
| Surface Treatment | Powder-coated sheet metal |
| Power Supply | 220 V ±5%, 50 Hz |
| Safety Protection | Leakage, overcurrent and short-circuit protection |
| Operating Temperature | −10°C to 50°C, as stated in the supplier documentation |
| Relative Humidity | ≤85%, as stated in the supplier documentation |
| Approximate Total Weight | 180 kg |
| Robot Cable Length | At least 5 m between the robot body and controller cabinet |
Specifications are based on the supplied product documentation. Please confirm
the robot model, final workstation configuration, environmental ratings and included
modules with the supplier before ordering.
Training Applications
The workstation is intended to support introductory practical teaching in the
following areas:
Robot Operation
Robot movement, positioning, teaching and basic operation.
Assembly Training
Special-shaped pin insertion and introductory assembly exercises.
Material Handling
Robot pickup, transfer and placement of materials.
Palletizing
Basic palletizing movements and warehouse-handling simulations.
Trajectory Programming
Writing, path-following and programmed robot movement exercises.
Conveyor Coordination
Introductory robot coordination with material-conveying equipment.
Simulated Industrial Processes
Introductory polishing and grinding simulation, gripper operation and TCP
trajectory training.
Suitable For
Vocational and Technical Colleges
Practical industrial robot teaching and introductory assembly training.
Robotics Training Laboratories
Hands-on robot operation, teaching and programming exercises.
Mechatronics Programmes
Training that combines robotics, assembly and material handling concepts.
Skills Competition Training
A modular platform for practical robot operation and application-based exercises.
Frequently Asked Questions
What is the main purpose of this training workstation?
Its primary purpose is introductory industrial robot training, with a special-shaped
pin-insertion module and additional listed functions for robot programming, material
handling, palletizing and trajectory simulation.
Which robot is used in this workstation?
The supplied documentation identifies the robot as BRT 0707 in the technical
parameter section and BRT 0707A in the configuration section. Please confirm
the exact model before ordering.
Are all listed training modules included?
The documentation lists multiple training modules and describes the platform as
modular. Please request a final equipment list to confirm which modules are included
in the quoted configuration.
Can I request a quotation and technical details?
Yes. Contact us to discuss the required workstation configuration, included modules,
technical documentation and quotation.
Request a Quote
Looking for a practical industrial robot training solution for your institution
or laboratory? Contact us for pricing, configuration details and technical
documentation.
