Product Overview

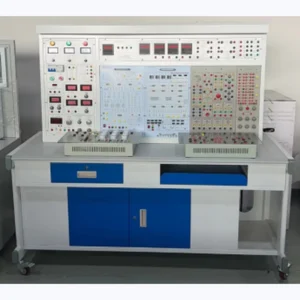

This platform combines electrician practical-training modules with X62W milling-machine electrical control fault diagnosis and PLC/AC drive system commissioning. The equipment structure uses industrial aluminium profiles and a modular panel layout to support wiring, testing, troubleshooting and maintenance exercises.
This solution is intended for education and practical skills development. The final system configuration can be tailored to the course objectives, available laboratory space and selected training modules.
Key Features

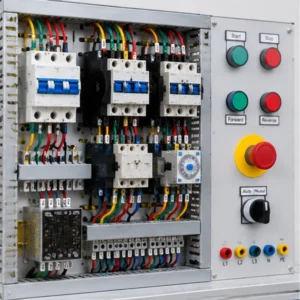

Electrician Power-Circuit Training
Practise motor reversing, jog/continuous operation, overload protection, two-location control and lighting circuits.

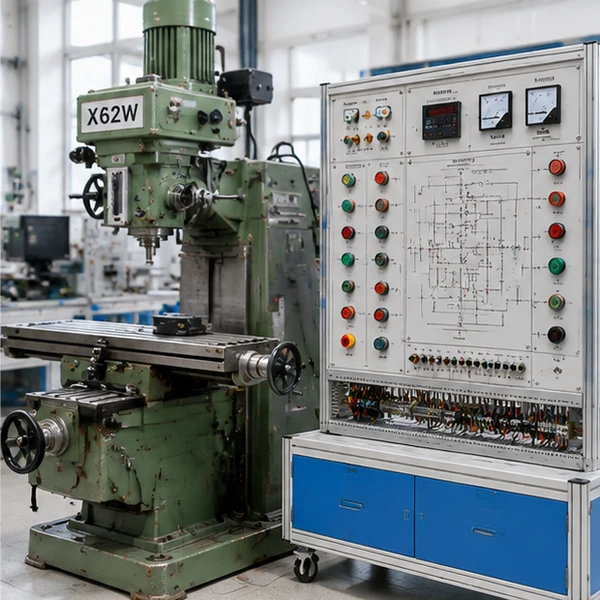

Machine-Tool Fault Diagnosis
Study X62W milling-machine control circuits, identify simulated faults and practise troubleshooting.

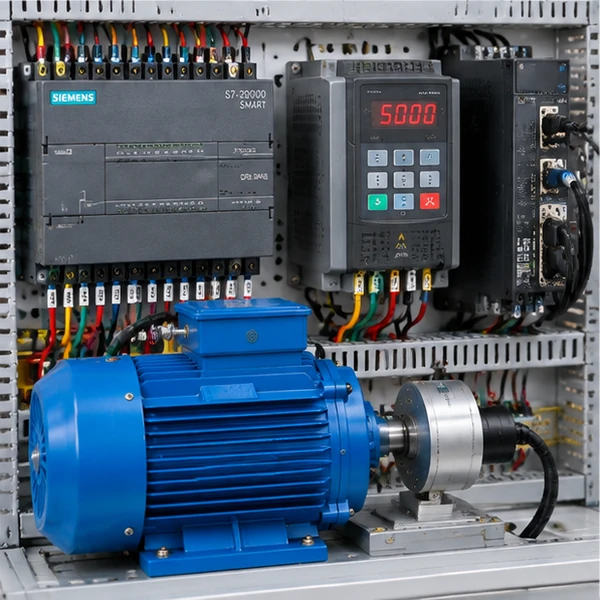

PLC & AC Drive Commissioning
The source lists PLC I/O, a three-phase inverter, an AC motor with encoder, and servo/stepper screw-slide equipment.
Electronics Assembly Extension
The described package includes electronic soldering and assembly accessories for practical electronics projects.
Practical Skills Development
Combine guided instruction with hands-on wiring, programming, testing and troubleshooting. Instructors can adapt exercises to the selected hardware and learning outcomes.
Feature Images & Training Modules
Training Content & Practical Exercises
- Electrician practical training
- Machine-tool electrical maintenance
- PLC and inverter commissioning
- Motor control and fault diagnosis
- Electronics assembly and innovation projects
Practical tasks may include system setup, wiring, PLC programming, operation, commissioning and fault diagnosis according to the final equipment configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall dimensions with computer desk | Approx. 1450 × 920 × 1400 mm |
| Main frame | European 3060/3030 heavy-duty aluminium profiles |
| Control panel | Approx. 1.2–2 mm aluminium panel |
| Supply options | AC 220 V and DC 24 V outputs described; module-specific AC 380 V circuits |
| Electrical training module | AC 380 V ±5%, three-phase five-wire; 32 A rated current; 50 Hz, as specified |
| X62W module | Fuses, thermal relays, contactors, breakers, transformer, limit switches and fault switches described |
| PLC/drive module | PLC with 14 inputs/10 outputs plus expansion; FR-D740-0.75K-CHT inverter specified |
| Motion hardware | Three-phase motor with encoder, servo motor with screw, stepper motor with screw |
| Safety | Protective grounding, leakage protection and emergency-stop controls described |
Applications & Target Users
Suitable for educational and technical training environments, including:
- Electrician practical training
- Machine-tool electrical maintenance
- PLC and inverter commissioning
- Motor control and fault diagnosis
- Electronics assembly and innovation projects
Contact Outdevice to discuss course objectives, module selection, laboratory layout and the required level of training.
