FD02 VIDEO BORESCOPES

The outer diameter of the probe insertion tube is as small as 1mm,Tungsten sheath or custom protective tube rugged wear-resistant, rear mounted LED light source 30,000 hours service life 1920×1200 resolution, HD touch screen,Quick replacement of spare probe.

The desk-top video scope can work continuously for 7*24 hours to meet the needs
of 100% full inspection of the work piece.

The desk-top industrial endoscope, megapixel camera, sapphire glass lens, high-definition large screen, more clear imaging; mechanical joystick control, 360° all-round guidance, customized fixed bending Angle, more convenient operation; Different diameter and length of the probe can be interchangeable, 2.0-8.0mm arbitrary outer diameter size other harsh environmental conditions test, durable; Modular product design, shorter maintenance cycle and lower after-sales maintenance costs.

Industrial Applications

Aerospace, automobile manufacturing, rail transit, petrochemical, energy and power, hydraulic machinery, machinery manufacturing, food and pharmaceutical, weapons and military industry and scientific research institutes

Application scenario

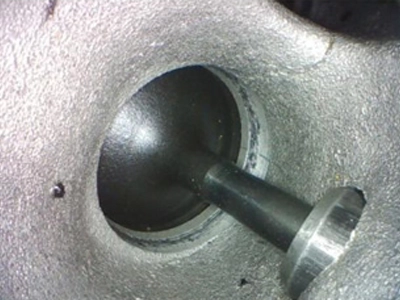

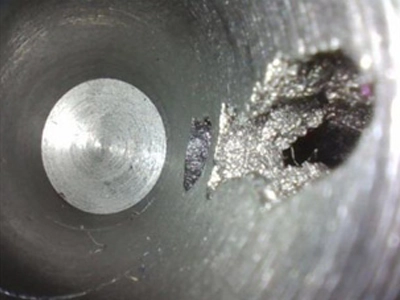

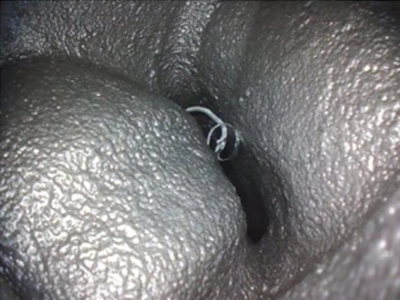

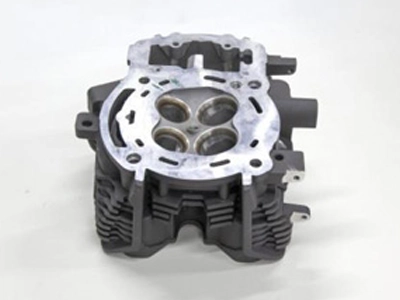

Die casting (sand, shrinkage, porosity), precision machining quality control (cracks, cross-hole burrs, iron filings and cleanliness inspection), welding quality control (welding leaks, cracks), assembly quality control (excessive gaps or interference), and endoscopy of supplier’s products by incoming material inspection department.

Product advantage

More durable,Handle all aluminum body,good heat dissipation, long time stable work,Sapphire glass lens more wear.
Higher clarity,Touch screen,1920×1200 resolution camera,up to 2 million effective pixels.
More convenient to use quick replacement Insert tube, compatible with multiple probe sizes: 1.0mm/2.4mm/3.9mm/6.0mm and customized probe

Product & Probe

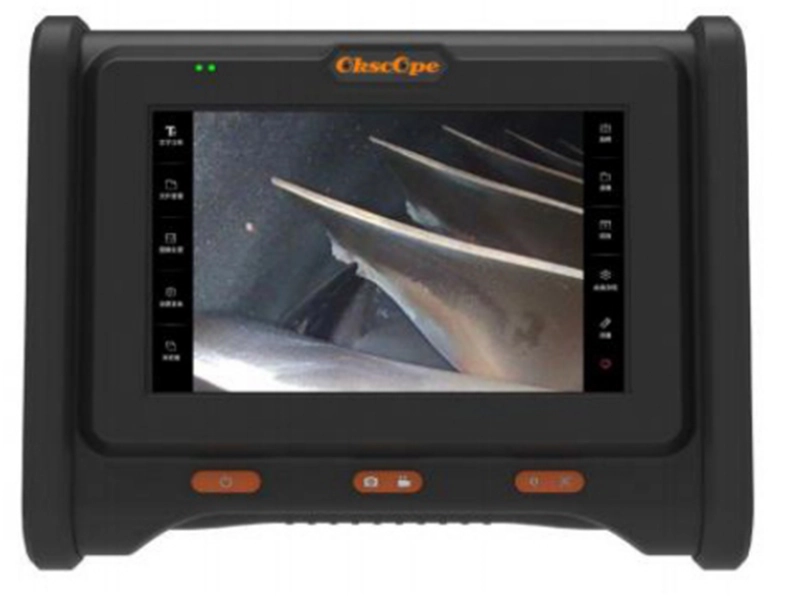

8 inch touching screen

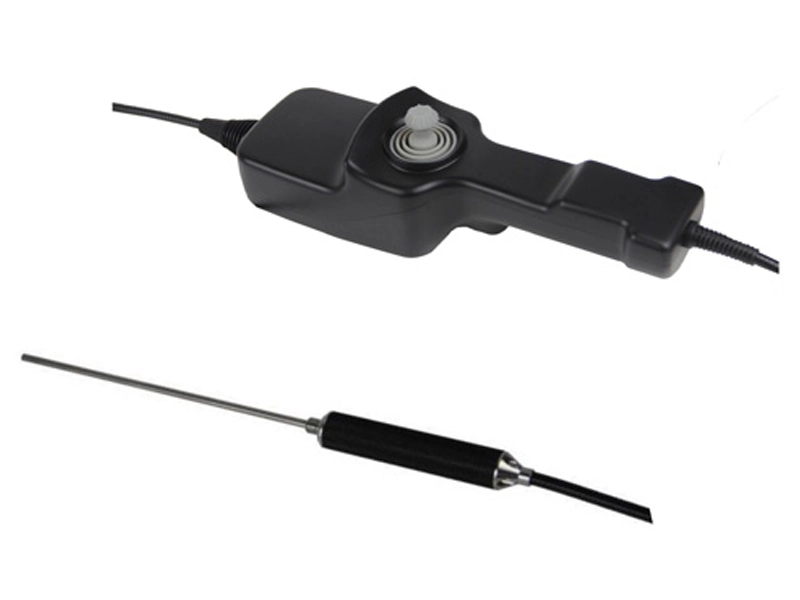

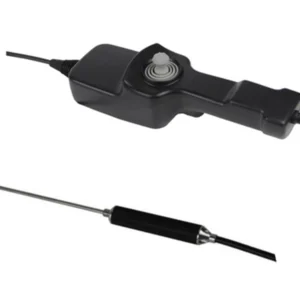

flexible four way articulation & rigid rod probe

SPECIFICATIONS

Probe specifications

Diameter Probe

⌀1.0mm,⌀1.2mm, ⌀1.7mm, ⌀2.0mm, ⌀2.4mm, ⌀2.8mm, ⌀3.9mm, ⌀6.0mm (can be customized)

Pixel Count

160k, 300k, 450k, 1,000k pixels

Insertion tube Scope length

1m, 2m, 3m, 5m (0.5-12m)

Forward Depth of field

3mm-80mm, 4-120mm 、 10mm-info, 50mm-info

Side Depth of field

2-15mm、 4-120mm、 10mm-info

Field of view

90°, 120°, 130°

Illumination Type

The handle has a built-in high-power LED light source, which is illuminated by optical fiber light guide

Illumination intensity

80,000Lux

Light source life

More than 30000 hours

Brightness Control

Auto and Variable

Articulation

Joystick Control 360° bending articulation,

Probe material process

Flexible high wear-resistant double-layer special tungsten wire woven skin (other protective skin can be customized), attached with polyurethane liquid proof coating

IP Rating

IP68

Waterproof

Insertion tube and camera to 14.7 psi (1 bar, 10.2 m of H2O, 33.5 ft of H2O)

Liquid resistance

Diesel, aviation kerosene, hydraulic oil, lubricating oil, weak acid, weak alkali or 5% salt solution can be used normally

Operating Temperature

-25°C to 100°C (-13°F to 212°F). Reduced articulation below 0°C (32°F)

Change probes

Interchangeable probe insertion tubes. One host can select multiple probe insertion tubes with different diameters and lengths at the same time

Host system

Desktop

System memory

Built-in 128GB SSD

Display

8 inch high brightness touch screen, brightness 500cd/m’ visible in daylight

Resolution

1920×1200

Taking photo

recording format: JPEG(. JPG) resolution: 1920X10801440x1080 1280×720 960×720 720×720 400X400

Video recording

recording format: MPEG4(. MP4)resolution: 1920X1080 1440X1080 1280X720 960X720 720X720 400X400

Data I/O interface

1 USB port, image and video files can be directly saved to the mobile flash drive
