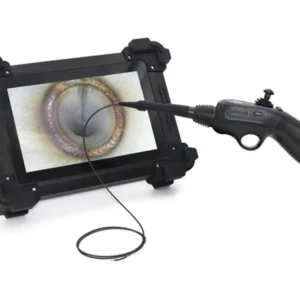

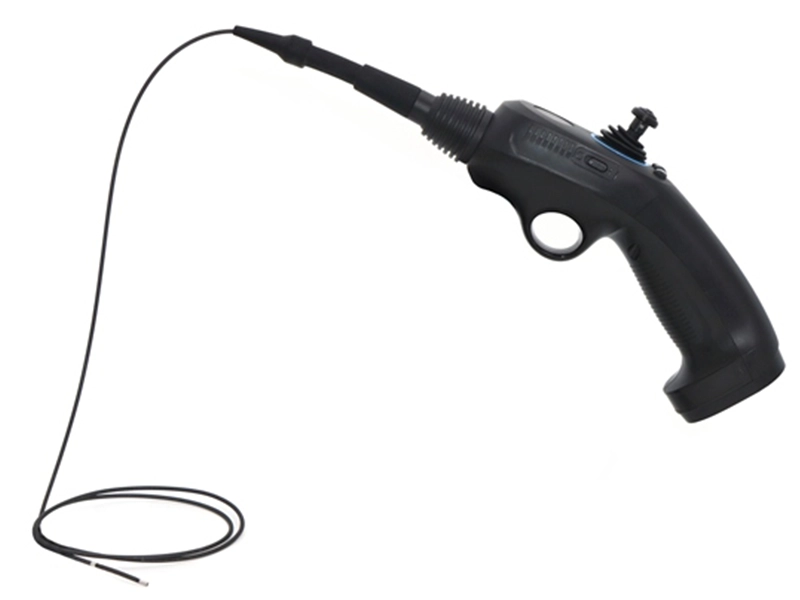

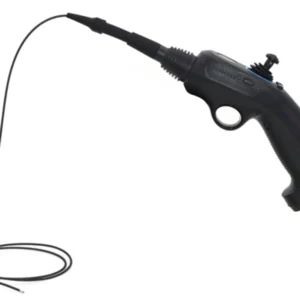

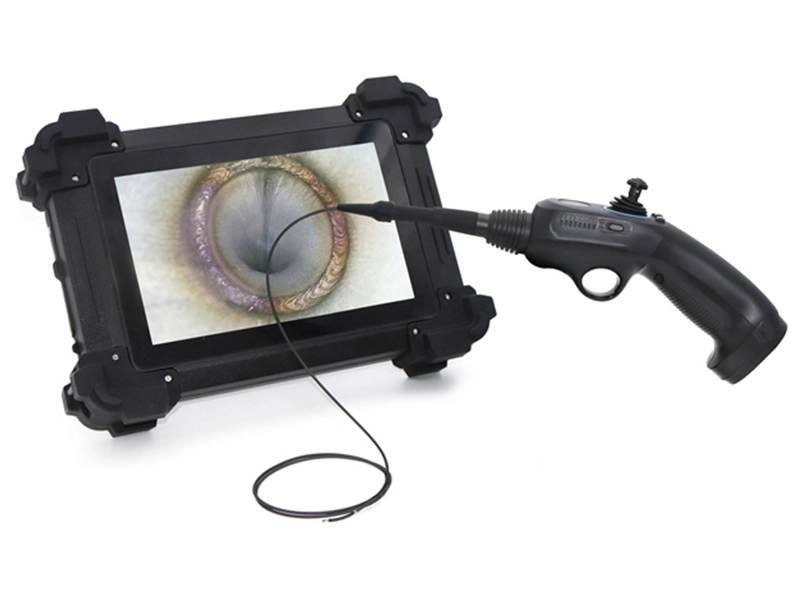

FD01 VIDEO BORESCOPES

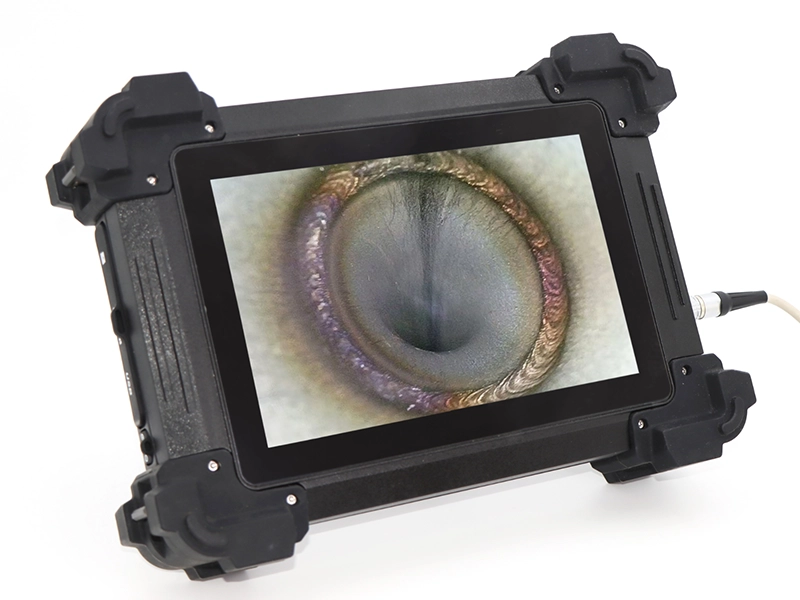

A professional inspection system featuring a 10.1″ large LCD display for real-time, high-resolution viewing. Equipped with upgraded image processing hardware, FD01 delivers clearer images, accurate color reproduction, and faster defect identification.
With a powerful battery, it supports up to 6 hours of continuous operation. The system is compatible with a wide range of interchangeable probes, including Ø1.0mm to Ø6.0mm probes, with side-view options available for Ø1.7mm and Ø2.2mm probes.
The replaceable probe tips and ultra-thin articulation design provide excellent flexibility for difficult-to-reach inspection areas, including 1.2mm two-way and 1.7mm four-way articulation options.
Product Features
10.1″ LCD
10.1″ Touchable screen
Large size real time inspection image
Long time working
Working 6 hours when battery is full
Higher image quality
Upgrade image processing hardware, and calculation. Ensure real color reducibility. Ensure fast and clearly defects identify.
Compatible for all series probes
Compatible for ⌀1.0/⌀1.2/⌀1.7/⌀2.2/⌀2.8/⌀3.0/⌀3.9/⌀6.0 series probe.
Compatible for all series probes
⌀1.7mm/Side view
⌀2.2mm/Side view

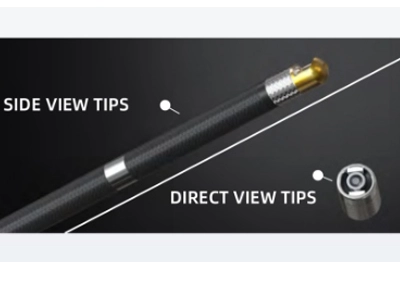

Replaceable Tips

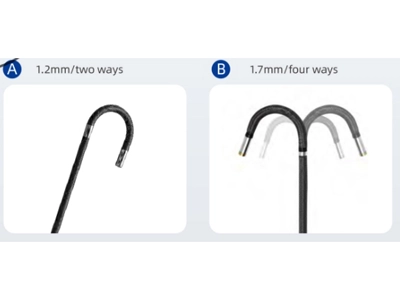

Super thin articulation
Super Thin
Replacement significantly enhancing equipment flexibility and operational efficiency, making inspections simpler and faster.

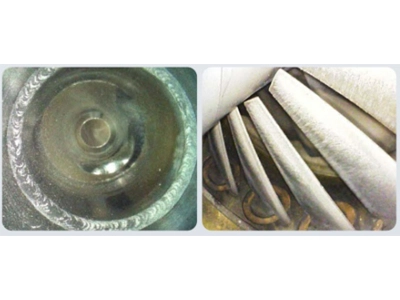

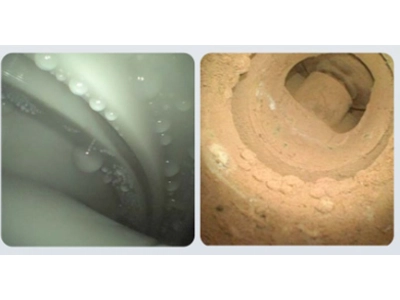

⌀1.0mm/400*400 Detection photos
⌀3.0mm/1280*720 Detection photos

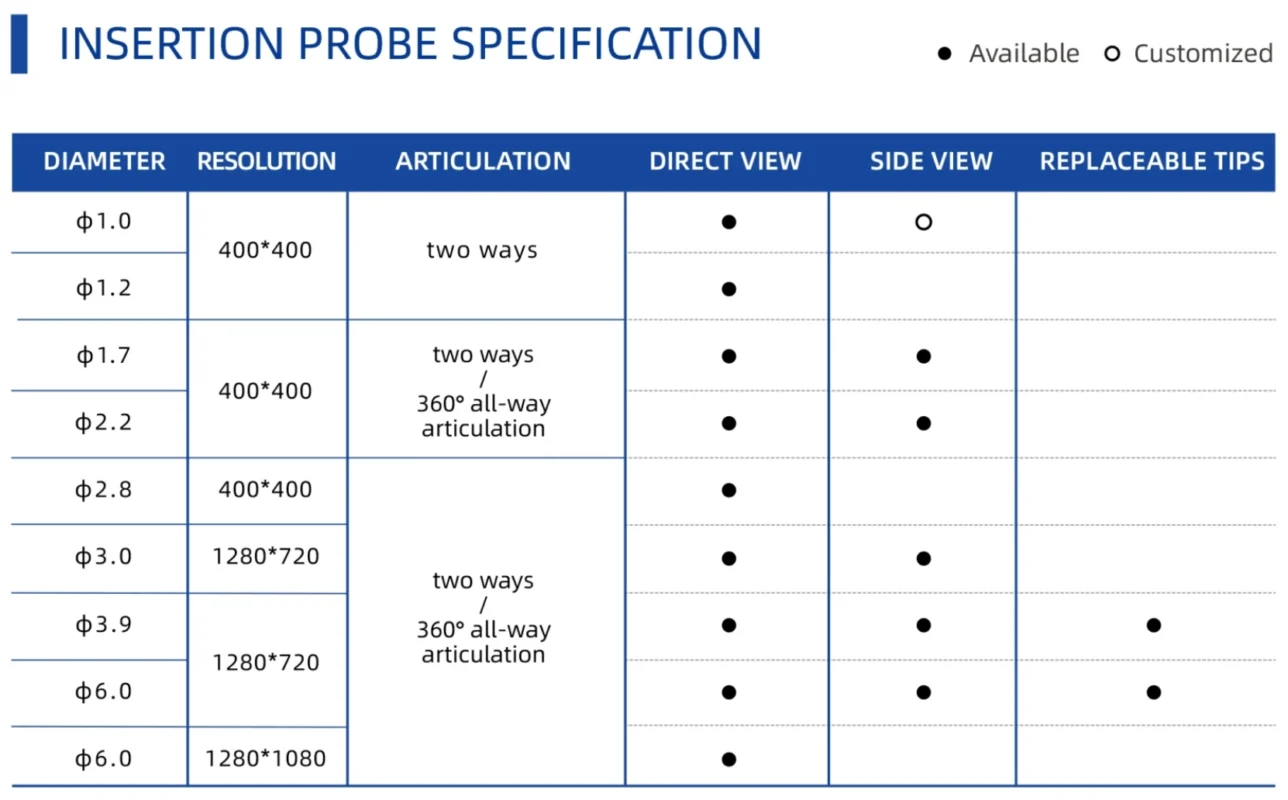

INSERTION PROBE SPECIFICATION
| System weight | 2.5KG |
|---|---|
| LCD Size | 10.1" touchable screen |
| Software function | HDR image process, high temperature alarm, freeze, screen split comparison, analog ruler,negative film |
| Image adjustment | brightness, contrast, hue, saturability, mirror image |
| Software upgrade | Remote upgrade |
| Image and video format | JPG/AVI |
| Image zoom | 4x |

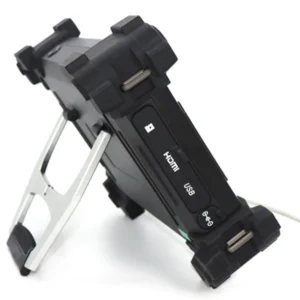

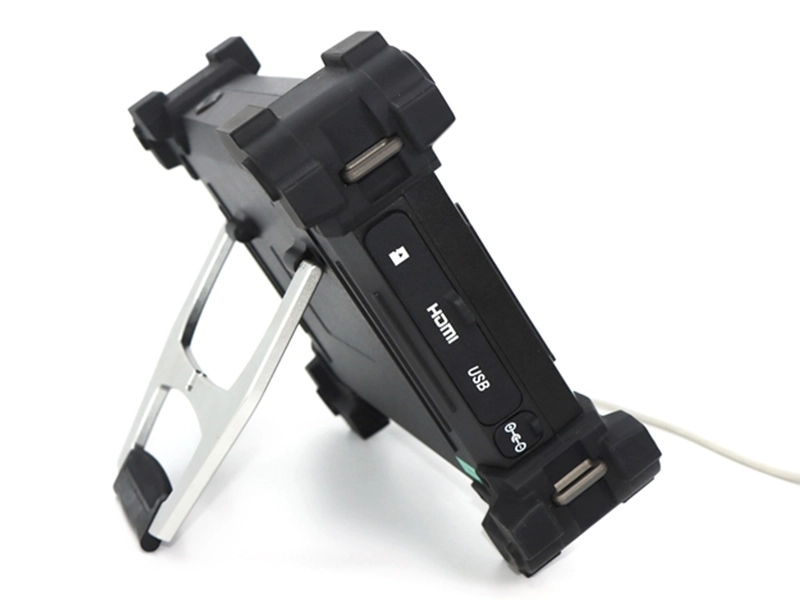

| Data connection | HDMI、USB |
| Relative humidity | 90%, Non-condensing |
| Operation system | Embedded operation system |
| Operation method | Touchable screen+press button |
| Battery run time | 6H |
| Charge | AC/DC |
| Working temperature | -10°~50° |
| Storage temperature | -20°~60° |
